Kirby Image Editor Field

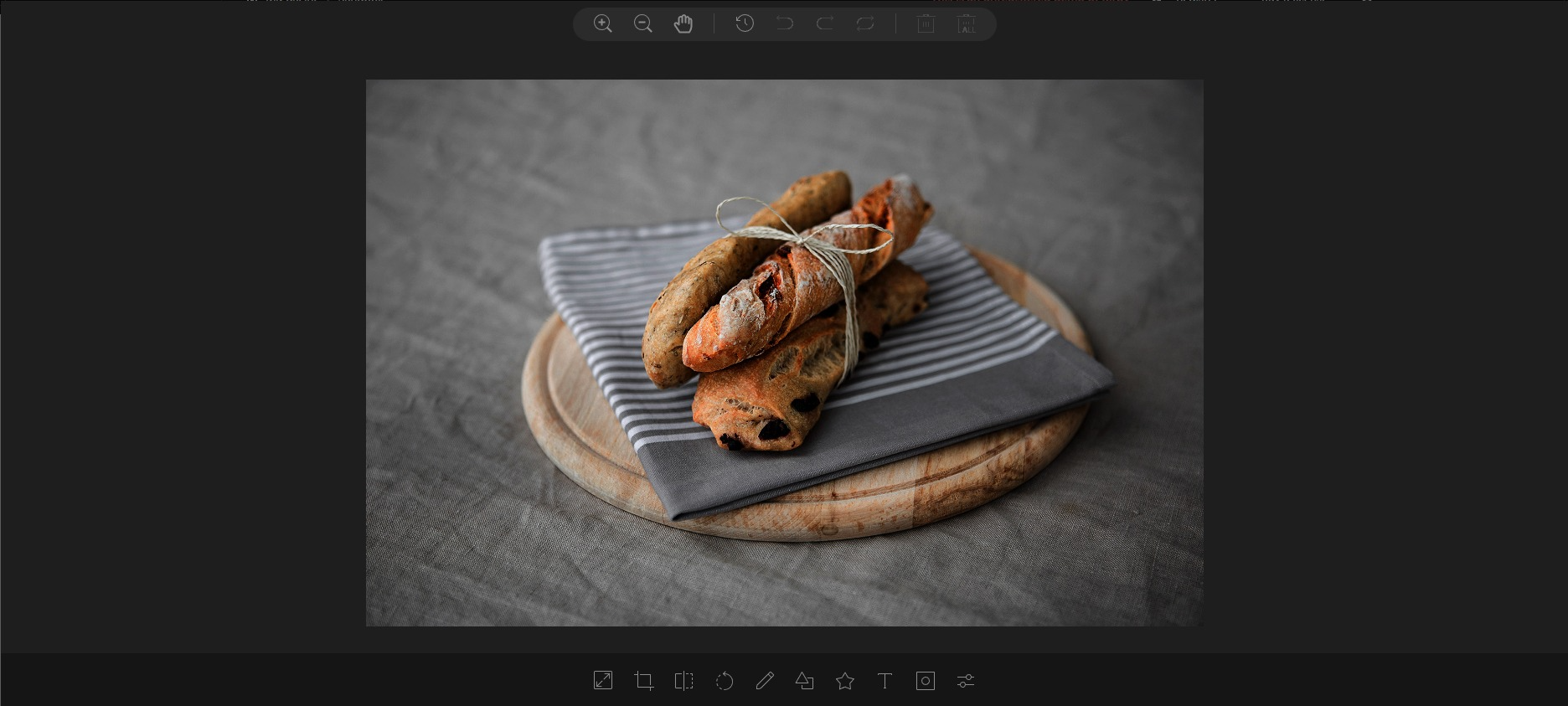

Full-featured photo image editor using canvas for Kirby 3. It is really easy, and it comes with great filters.

image-editor

TOAST UI Image Editor

This plugin developed based on tui.image-editor. You can check out all features and documents from official website.

:art: Editor features

  • Load image to canvas
  • Undo/Redo (With shortcut)
  • Crop
  • Flip
  • Rotation
  • Resize
  • Free drawing
  • Line drawing
  • Shape
  • Icon
  • Text
  • Mask Filter
  • Image Filter

Installation

  1. Download the latest release
  2. Unzip downloaded file
  3. Copy/paste unzipped folder in your /site/plugins folder

Usage

fields:
    editor:
        type: image-editor
        layout: cards
        size: medium

Properties

The field contains all the properties of the files field (layout, size, query, etc…). Also includes followings:

Property Type Default Description
cssMaxHeight int null Canvas css-max-height
cssMaxWidth int null Canvas css-max-width
menu array [‘resize’, ‘crop’, ‘flip’, ‘rotate’, ‘draw’, ‘shape’, ‘icon’, ‘text’, ‘mask’, ‘filter’] It can be selected when only specific menu is used
menuBarPosition string left Menu bar position(‘top’, ‘bottom’, ‘left’, ‘right’)

Options

Option Type Default Description
cssMaxHeight int null Canvas css-max-height
cssMaxWidth int null Canvas css-max-width
menu array [‘resize’, ‘crop’, ‘flip’, ‘rotate’, ‘draw’, ‘shape’, ‘icon’, ‘text’, ‘mask’, ‘filter’] It can be selected when only specific menu is used
menuBarPosition string left Menu bar position(‘top’, ‘bottom’, ‘left’, ‘right’)

All options optional and the values can be updated in the config.php file and prefixed with owebstudio.tui-image-editor..

Sample options

<?php

// All options optional
// /site/config/config.php
return [
    'owebstudio.tui-image-editor' => [
        'cssMaxWidth' => 1200,
        'cssMaxHeight' => 900,
        'menu' => ['resize', 'crop'],
        'menuBarPosition' => 'bottom'
    ]
];
1 Like
