Nodes limitations work in drawer not in preview

Kirby 3 Solved ✅
1

As in Marks restrication in text block doesn't work in preview for marks I noticed this for nodes: restriction for nodes, to only show ul and ol, work in drawer but not in preview, all nodes will be shown.

Kirby 3.6.2

2

Hm, works for me?

fields:
  blocks:
    type: blocks
    fieldsets:
      text:
        extends: blocks/text
        fields:
          text:
            nodes:
              - bulletList
3

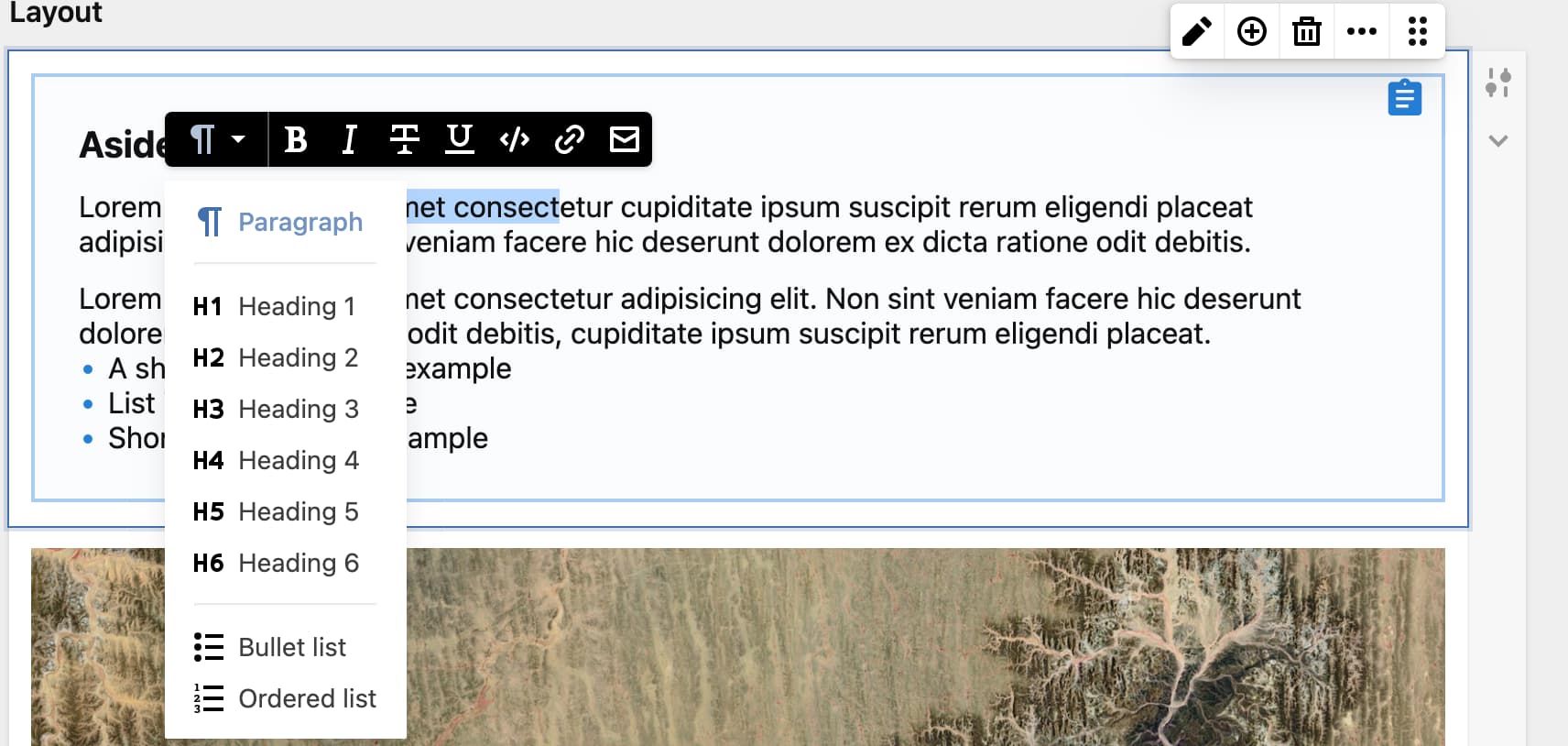

Schermafbeelding 2022-02-25 om 17.14.48
Schermafbeelding 2022-02-25 om 17.14.481712×814 126 KB

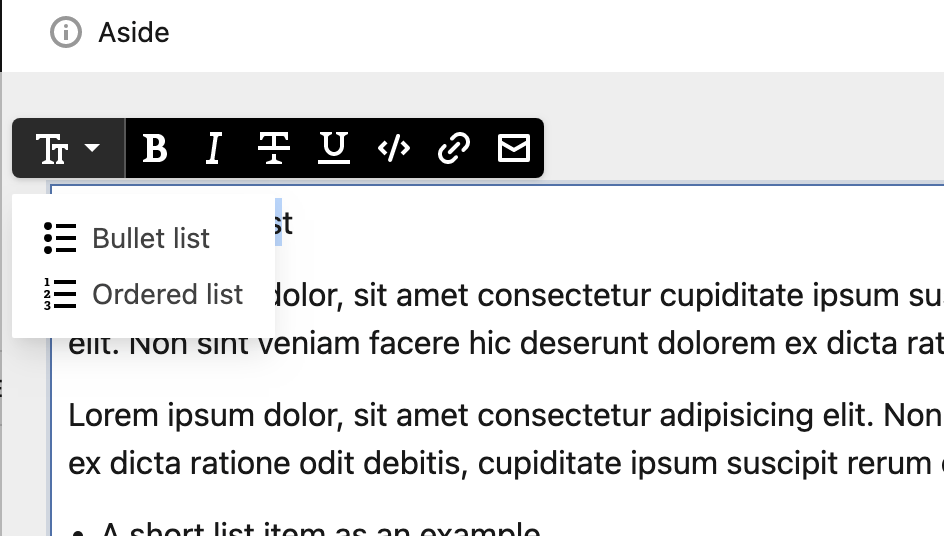

Schermafbeelding 2022-02-25 om 17.15.06
Schermafbeelding 2022-02-25 om 17.15.06944×536 51.5 KB

name: Aside
icon: info
fields:
  text:
    label: Text
    type: writer
    placeholder: Enter Aside text …
    nodes:
      - bulletList
      - orderedList

I must be doing something wrong … ?

4

So this is a custom block with your own preview?

5

yes

6

Any reason you don’t use the text preview?

name: Aside
icon: info
preview: text
fields:
  text:
    label: Text
    type: writer
    placeholder: Enter Aside text …
    nodes:
      - bulletList
      - orderedList
7

Hmmm, wasn’t aware of that but that destroys my nice custom aside preview. Although the nodes work properly in that case. How can I get both :grinning:

8

Could you post your preview code?

9
<template>
  <div class="aside" :data-icon="icon" :style="hue">
    <k-writer
      class="label"
      ref="textbox"
      :marks="textField.marks"
      :value="content.text"
      :placeholder="textField.placeholder"
      @input="update({ text: $event })"
    />
  </div>
</template>

<script>
export default {
  computed: {
    textField() {
      return this.field("text");
    },
    hue() {
      return '--hue:' + this.content.color + ';'
    },
    icon() {
      if (this.content.icon.length) {
        return this.content.icon;
      } else if (this.content.icon_text.length) {
        return this.content.icon_text;
      } else {
        return false;
      }
    }
  },
};
</script>
10

You haven’t defined the nodes attribute like in the original text field preview:

<template>
  <k-writer
    ref="input"
    :inline="textField.inline"
    :marks="textField.marks"
    :nodes="textField.nodes"
    :placeholder="textField.placeholder"
    :value="content.text"
    class="k-block-type-text-input"
    @input="update({ text: $event })"
  />
</template>
11

Yup, of course that’s it, thanks.
So, where can I read more about the preview thingy?

12

General stuff you can find in the different block recipes in the cookbook.

But there is also the documentation about all Panel components: UI Kit | Kirby CMS

13

Yeah, plenty to read. But not much about “preview”?

14

All blocks recipes are about previews. What exactly are you missing?

15

Never mind. Your remark “Any reason you don’t use the text preview?” made me think there was more to it and why do I need text preview on custom block …
